Chevy Silverado Headlight Bulb Replacement

2008 Chevy Silverado



Low Beam Bulb -BP1255H11 Halogen

My 2008 Chevy Silverado needed a low beam, headlight bulb replacement. I did a little research and the estimated cost to have it replaced by a shop was between $60 and $80. This is a job I knew I could easily do myself, so I checked the price of the bulbs. They typically ranged anywhere from $15 to $20 dollars. I found a low beam replacement bulb on line at Amazon for $17.74, including shipping, that will be delivered right to your door.

The bulb I needed to replace was on the passenger side of the vehicle. To access the back side of the headlight assembly required me to remove the air box. Follow the below steps for gaining access the the bulb and replacing it. The bulb on the drivers side can be replaced without removing anything.

Safety Consideration

Before beginning the air box removal, be aware that you will be working near the radiator fan and the serpentine belts and pulleys.  For that reason you should always make sure your vehicle will not start.  The best way to do this is to remove one of your battery leads.  This is especially important when working on a vehicle with remote start capability!  For other safe work practices for home projects, take some time and read my articles on home project safety and lockout – tagout.  Remember, there’s no short cuts when it comes to safety!

Remove the Air Box

There are four T-25 torx screws that hold the air box cover in place. The screw in the lower, right hand corner looks difficult to get to, but most of the obstructions in that area are hoses and are easily moved.  Remove all 4 screws using a torx screw driver.  By adding these normal, routinely used tools to your collection, as you need them, prepares you for future projects.  And overall you’ll still spend less than taking it to a repair shop.

Air Box Removal

Loosen the hose clamp that attaches the air intake hose to the cover / mass air flow sensor.  Remove the cover and the air filter from the air box. This is a good time to replace the air filter if needed too. And yes, that’s all there is to replacing the air filter. You shouldn’t even need to remove the air intake hose to just change the filter.

To remove the air box, grasp it and firmly pull up on it. It is held in place by 3 connectors that fit into rubber grommets and it should pull out fairly easily.

Air Box Removed

Remove the Bulb

With the air box out you can easily access the back of the headlight assembly. Remove the connector from the bulb. There are two small latches on the side of the connector. Gently lift the latches and rock the connector from side to side to release it.

With the connector removed, turn the bulb ¼ turn and it should come straight out. When installing the the new bulb, I’ve always been told not to touch the glass part of the bulb with your hands. Oils from your skin can lead to surface contamination, which leads to premature bulb failure.

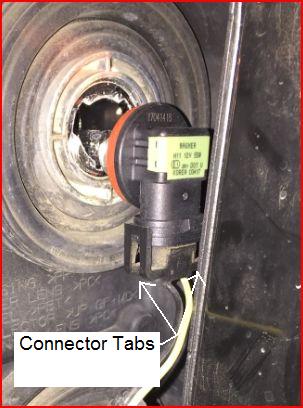

Bulb Connector Tabs

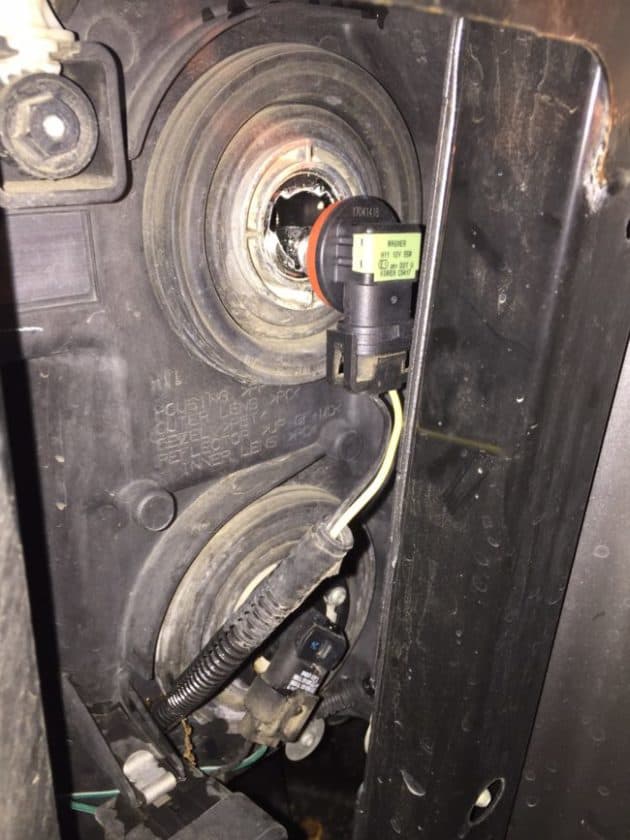

Back of Headlight Assembly

Re-install the Air Box

Once you’ve completed the headlight bulb replacement, just reverse the dis-assembly steps to complete the replacement. One tip I’d like to offer is when re-installing the air box, use a small amount of lubricant (oil, grease or dish soap) to the rubber grommets to help with the installation.

And there you have it. In about ½ hour you just saved yourself $40 – $60! No scheduling appointments and no waiting. Don’t be afraid to give it a try, it’s very rewarding as well!
